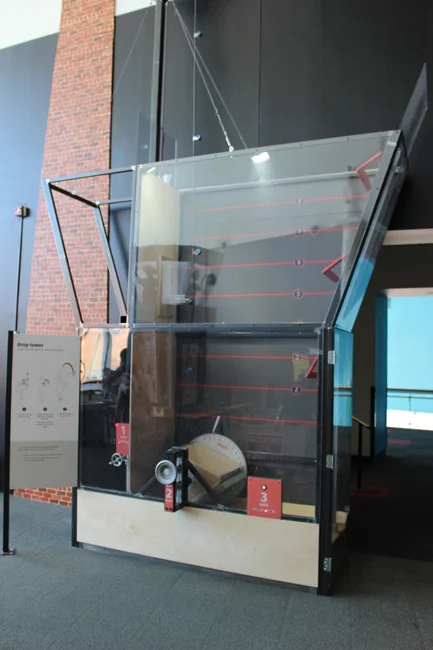

Shot Tower
This exhibit is designed to show guests how balls bounce on different materials, wood, carpet, and foam. It also allows them to experiment with different angles of bounce, as they can rotate the surface that the balls are bouncing on. I designed the claw system for raising the balls, as well as the entire top structure, where the balls are deposited, queued, and released. I also wrote the software for controlling the top structure.
Processes and tools used:
- Solidworks
- CNC
- 80/20 Aluminum Extrusions
- Vertical Mill
- Nail Gun, Wood Glue, Table Saw, Router Table
